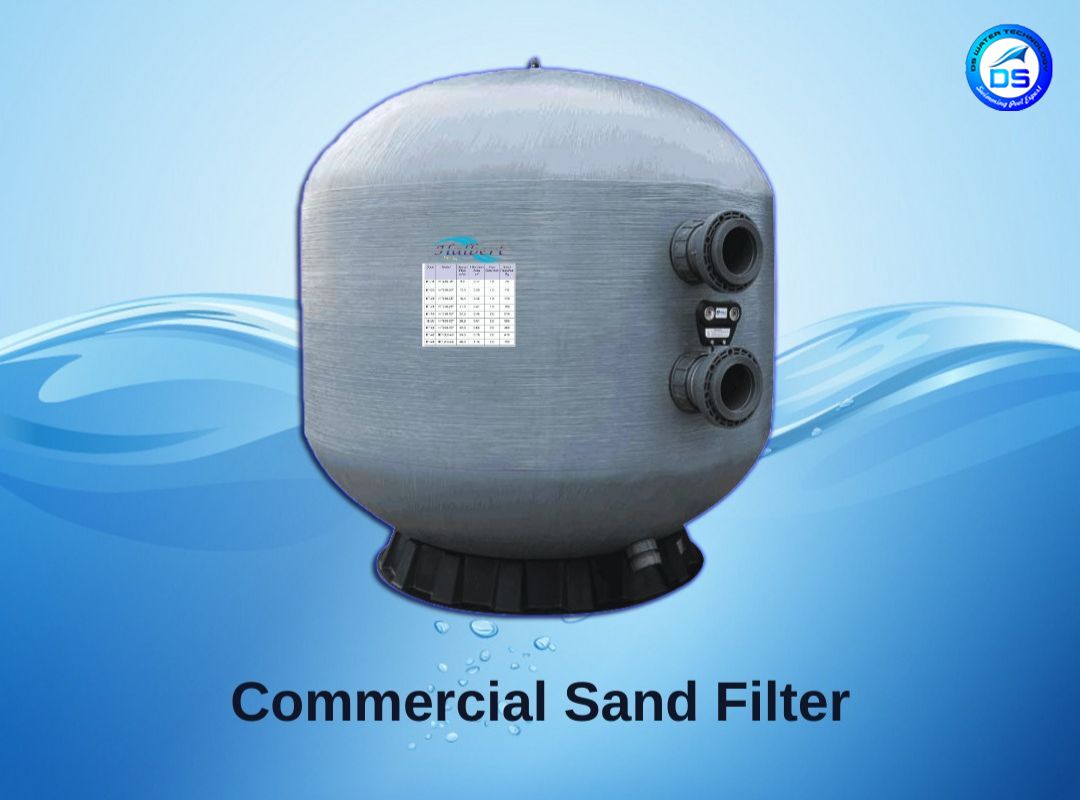

PS Series Commercial Sand Filter Overview
The PS Series spans seven models PS 1200, PS 1400, PS 1600, PS 1800, PS 2000, PS 2300, and PS 2350.
- PS 1200 / PS 1400: smaller units for single hotel or club pools with moderate flow needs
- PS 1600 / PS 1800 / PS 2000: mid-range models for larger single-pool or moderate multi-use sites
- PS 2300 / PS 2350: highest-capacity models, up to 210 m³/h, for multi-pool sites and water parks
Commercial Sand Filter - Quick Facts
Before ordering, check: required anchor size, ladder or handrail dimensions, fitting-to-anchor compatibility, concrete deck installation requirements, required fixing hardware, and the quantity needed for the project. For this product, the specified anchor size is 38 mm confirm the compatible fitting's dimensions before installation.
| Fact |
Detail |
| Manufacturer/Supplier |
DS Water Technology (New Delhi) |
| Series Available |
PS Series |
| Model Range |
PS 1200 to PS 2350 |
| Sizing Basis |
Filter area + valve connection + gravel load |
| Filter Area Range |
1.13 m² – 4.43 m² |
| Valve Connection Range |
3.0 inch (90mm) – 8.0 inch (200mm) |
| Max Flow Rate Range |
55 m³/h – 210 m³/h |
| Gravel Load Range |
900 kg – 6,600 kg |
| Dimension A Range |
1410 mm – 2510 mm |
| Dimension B Range |
1200 mm – 2350 mm |
| Price |
₹23,400 to over ₹8,80,000 |
| Typical Applications |
Hotels, resorts, clubs, gyms, townships, water parks, multi-pool sites |
| Configuration Options |
Top Mount & Side Mount setups |
| Order Types Supported |
Single-unit and bulk/project-scale orders |
PS Series Technical Specifications: PS 1200–PS 2350
| Model |
Filter Area (m²) |
Valve Connection |
Max Flow Rate |
Gravel (kg) |
A (mm) |
B (mm) |
| PS 1200 |
1.13 |
3.0 inch (90mm) |
55 m³/h |
900 |
1410 |
1200 |
| PS 1400 |
1.54 |
3.0 inch (90mm) |
76 m³/h |
1350 |
1570 |
1400 |
| PS 1600 |
2.06 |
4.0 inch (110mm) |
100 m³/h |
2300 |
1740 |
1600 |
| PS 1800 |
2.52 |
6.0 inch (160mm) |
120 m³/h |
2900 |
2040 |
1800 |
| PS 2000 |
2.97 |
6.0 inch (160mm) |
145 m³/h |
4000 |
2210 |
2000 |
| PS 2300 |
4.43 |
8.0 inch (200mm) |
210 m³/h |
6000 |
2510 |
2300 |
| PS 2350 |
4.43 |
8.0 inch (200mm) |
210 m³/h |
6600 |
2510 |
2350 |
Where the PS Series Is Used
- Hotels and resorts
- Private clubs and gyms
- Residential townships
- Water parks
- Multi-pool sites sharing one plant room
The same series covers a single hotel pool or a large multi-pool installation just by selecting a different model.
PS Series Configuration and Compatibility
- Valve setup selected to match your existing pipework and plant room space see the dedicated mount-type pages below for detailed selection guidance
- Can be specified alongside DS Water Technology's related pool circulation and filtration equipment
- Suitable for both new installations and capacity upgrades
Bulk and Project Supply for Commercial Pool Filters
- All seven PS Series models (PS 1200 to PS 2350) available as single units
- Bulk and project-scale orders supported for hotel chains, townships, and multi-site developments
- Project-quantity pricing available on request
What Makes a Commercial Sand Filter Suitable for High Flow?
A sand filter qualifies as commercial grade when its filter area, valve size, and gravel bed are built to sustain continuous high-volume turnover, not just intermittent residential use. In the PS Series, this shows up as reinforced valve connections up to 8.0 inch (200mm), gravel loads up to 6,600 kg, and flow rates up to 210 m³/h, all sized to hold water clarity steady under constant occupancy loads like hotels, clubs, and water parks.
How to Choose the Right Commercial Sand Filter
Choose the right commercial swimming pool sand filter based on the required flow rate, pool turnover, filter area, valve connection and available plant-room space. For the PS Series, compare these requirements with each model’s specifications to select the appropriate filter for your pool filtration system.
Related Commercial Pool Filtration Products
Need a specific valve orientation for your plant room, or other pool equipment for the same project? These pages cover that in detail:
Frequently Asked Questions
How do I choose the right PS Series model for my pool?
Match your pool's required flow rate and turnover to the filter area, valve connection, and gravel load of a given model larger or higher-traffic pools need models further up the PS 1200 - PS 2350 range.
Which valve configuration should I pick top mount or side mount?
It depends on your plant room space and pipework layout. See the dedicated Top Mount Sand Filters and Pool Side Mount Sand Filter pages for a detailed comparison.
Can the PS Series handle water park or multi-pool installations?
Yes. The higher-capacity PS 2300 and PS 2350 models have maximum listed flow rates of up to 210 m³/h, making them suitable for high-flow commercial applications such as water parks and multi-pool facilities, subject to hydraulic system design.
Does DS Water Technology supply for bulk or project orders?
Yes. DS Water Technology supports both single-unit purchases and bulk or project-scale orders. Project requirements and quantities can be discussed to determine the appropriate model and quotation.
What does the gravel load specification indicate?
The gravel load indicates the specified gravel/media loading quantity for each PS Series tank size. The range is 900 kg to 6,600 kg, depending on the model, and should be considered when planning filter installation and media requirements.
