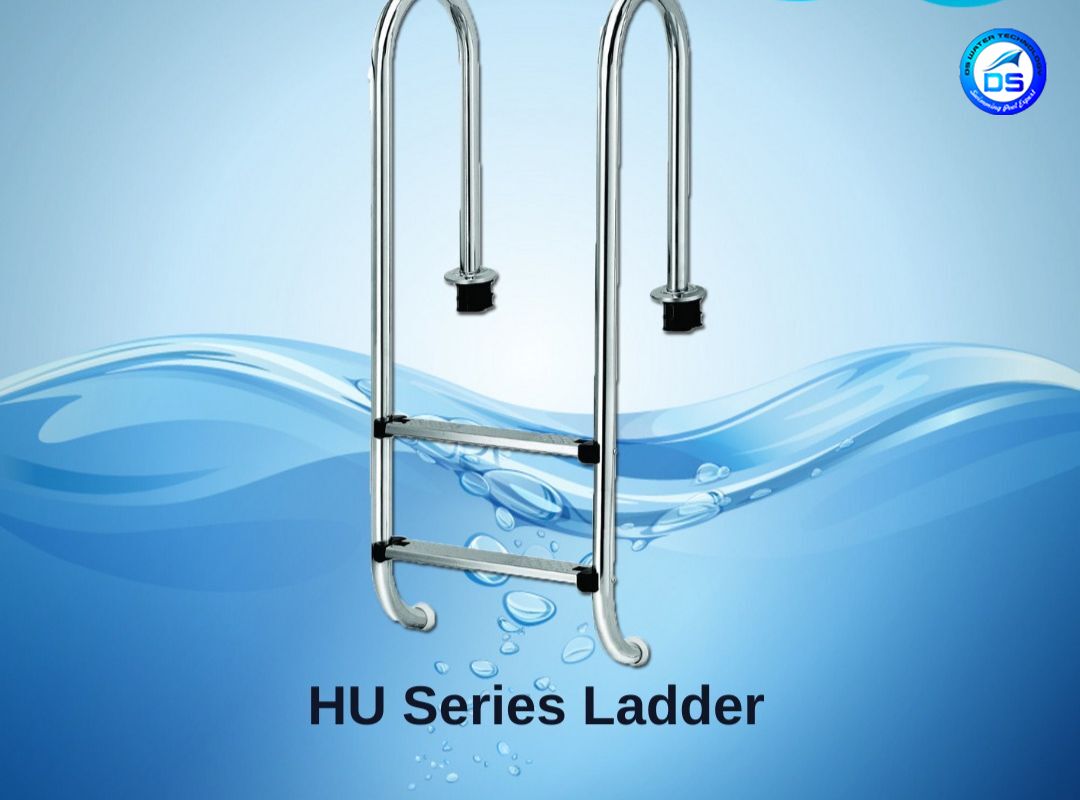

Pool HU Series Ladder
The Pool HU Series Ladder is a U-shaped stainless steel swimming pool ladder designed for convenient pool entry and exit in residential and commercial pools. It is available in four models HU-215, HU-315, HU-415 and HU-515 with overall spans from 1330 mm to 2080 mm, allowing selection based on available deck space and installation requirements.
What Is the Pool HU Series Ladder?
Unlike a simple step-only design, the HU Series uses an extended U-shaped handrail that gives swimmers a defined hold point while entering or leaving the pool. The stainless steel build is intended to perform in continuous wet, chlorinated conditions.
Pool HU Series Ladder – Quick Facts
| Quick Product Facts | Details |
|---|---|
| Product Name | Pool HU Series Ladder |
| Design | U-shape handrail configuration |
| Material | Stainless steel |
| Models | HU-215, HU-315, HU-415, HU-515 |
| Overall Span (B) | 1330 mm – 2080 mm |
| Suitable For | Residential & commercial pools |
| Price Range | ₹9,100 – ₹12,000 |
| Custom Configuration | Available on request |
HU Series Swimming Pool Ladder Models and Dimensions
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|
| HU-215 | 502 | 1330 | 365 | 640 | 180 | 200 | 250 |
| HU-315 | 502 | 1580 | 365 | 640 | 180 | 200 | 250 |
| HU-415 | 502 | 1830 | 365 | 640 | 180 | 200 | 250 |
| HU-515 | 502 | 2080 | 365 | 640 | 180 | 200 | 250 |
Only the B dimension (overall handrail span) changes across the range. All other dimensions stay constant confirm the exact model against your site measurements before finalizing.
Where Can the Pool HU Series Ladder Be Used?
| Application | Fit for HU Series |
|---|---|
| Residential pools | Smaller spans (HU-215, HU-315) |
| Hotels and resorts | Wider spans (HU-415, HU-515) |
| Clubs and sports facilities | Subject to deck space |
| Commercial/institutional pools | Subject to site requirements |
| New build vs. replacement | Suitable for both |
Choosing the Right HU Pool Series Model
Match the B dimension to your available deck span, then confirm pool wall/coping construction and fixing points with your installer, since mounting compatibility varies by pool structure. Looking for a different configuration? DS Water Technology also offers the HLT Series and HOF Series pool ladders compare designs to find the right fit.
Frequently Asked Questions
What sizes are available in the Pool HU Series Ladder?
The Pool HU Series Ladder is available in five span sizes - HU-215, HU-315, HU-415, and HU-515 with the B dimension (overall span) ranging from 1330 mm to 2080 mm. All other dimensions remain the same across every model.
Which Pool HU Series Ladder model fits my pool deck?
Model selection depends on the available deck span and installation clearance. Measure the deck opening and compare it against the B dimension of each Pool HU Series Ladder model, then confirm fixing points with your pool contractor before ordering.
Is the Pool HU Series Ladder suitable for commercial and hospitality projects?
Yes. The Pool HU Series Ladder is built for commercial use in hotels, resorts, clubs, and other high-traffic pool facilities, and installation should account for site-specific deck and access requirements.
What is the price range of the Pool HU Series Ladder?
The Pool HU Series Ladder is priced between ₹9,100 and ₹12,000 depending on the model and site requirements.
Can the Pool HU Series Ladder be customized for a specific project?
Yes. DS Water Technology can discuss configuration and installation options for the Pool HU Series Ladder based on exact pool dimensions and project needs.
